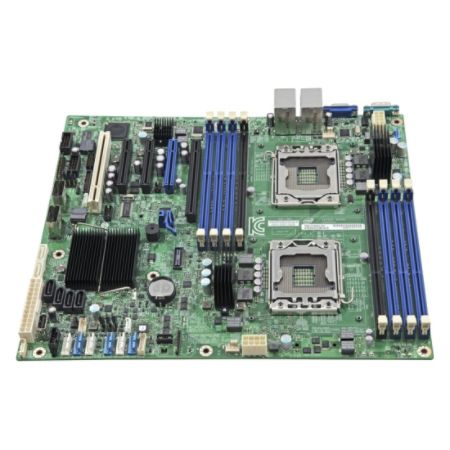

Intel S2400SC2 Server Motherboard - Intel C600-A Chipset - Socket B2 LGA-1356 Item # 208054
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
208054
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The Intel Server Board S2400SC2 is built as a standard form factor server board and delivers affordable storage expandability in either a pedestal or rack chassis by providing eight SAS/SATA ports plus two SATA 6 GB and four SATA 3 Gb ports. The Intel Server Board S2400SC2 is ideal as an affordable server building block for small businesses seeking real dual-socket server performance.
Product Details
| Item # | 208054 |
| Manufacturer # | 3226932 |
| Number of SATA Interfaces | 6 |
| Hardware Features | Trusted Platform Module (TPM), Intel Fast Memory Access Technology |
| Onboard LEDs Header | Yes |
| Power Supply Supported | EPS12V |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz; 800 MHz |
| Compatible Processors | Xeon E5-2400 series |
| Number of Network (RJ-45) Ports | 2 |
| BIOS Type | Intel |
| Internal Interfaces | 1 x USB 2.0 - Type A ¦ 2 x USB 2.0 ¦ 1 x serial |
| Registered or Buffered | Registered, unbuffered, Load-Reduced |
| Graphics Controller Manufacturer | Intel |
| RAID Features | Software RAID 0/ 1 / 10 / 5 |
| Audio Line In | No |
| Storage Interfaces | SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-300 - connector(s): 8 x 7pin Serial ATA - 4 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 2 |
| Total Number of PCI Express Slots | 4 |
| Graphics Memory Accessibility | Dedicated |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| VGA | Yes |
| Max Processors Qty | 2 |
| RAID Supported | Yes |
| brand name | Intel |
| Dedicated Video Memory | 16 MB |
| Network Controller | Intel 82574L |
| Processor Technology | Trusted Execution Technology |
| Number of USB 2.0 Ports | 4 |
| Memory Form Factor | RDIMM; UDIMM; DIMM |
| Processor Socket | LGA1356 Socket |
| Chipset Model | C600-A |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of PCI Slots | 1 |
| QuickPath Interconnect | 8 GT/s |
| Number of PCI Express x8 Slots | 3 |
| Number of eSATA Ports | 0 |
| Total Number of Onboard USB Ports | 2 |
| RAID Levels | 0; 1; 5; 1+0 |
| Processor Supported | Xeon |
| BIOS Features | IPMI support |
| Total Number of USB Ports | 4 |
| Serial Port | Yes |
| width | 12 in |
| Number of Memory Slots | 8 |
| depth | 10.5 in |
| Product Name | S2400SC2 Server Motherboard |
| manufacturer | Intel Corporation |
| Audio Line Out | No |
| Max Size | 128 GB |
| Maximum Memory | 128 GB |
| Supported RAM Integrity Check | ECC |
| controller type | Serial ATA/300; Serial ATA/600; Serial Attached SCSI (SAS) |
| Number of Onboard USB 2.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | No |
| Graphics Controller | ServerEngines Pilot III |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Graphics Memory Technology | DDR3 SDRAM |
| Number of Total Expansion Slots | 5 |
| Chipset Manufacturer | Intel |
| Graphics Controller Memory | 16 MB |
| form factor | SSI CEB |
| Memory Technology | DDR3 SDRAM |
| Number of SAS Interfaces | 8 |
| warranty length | 3-year limited |
| model name | S2400SC2 |
| Show More ▾ |
